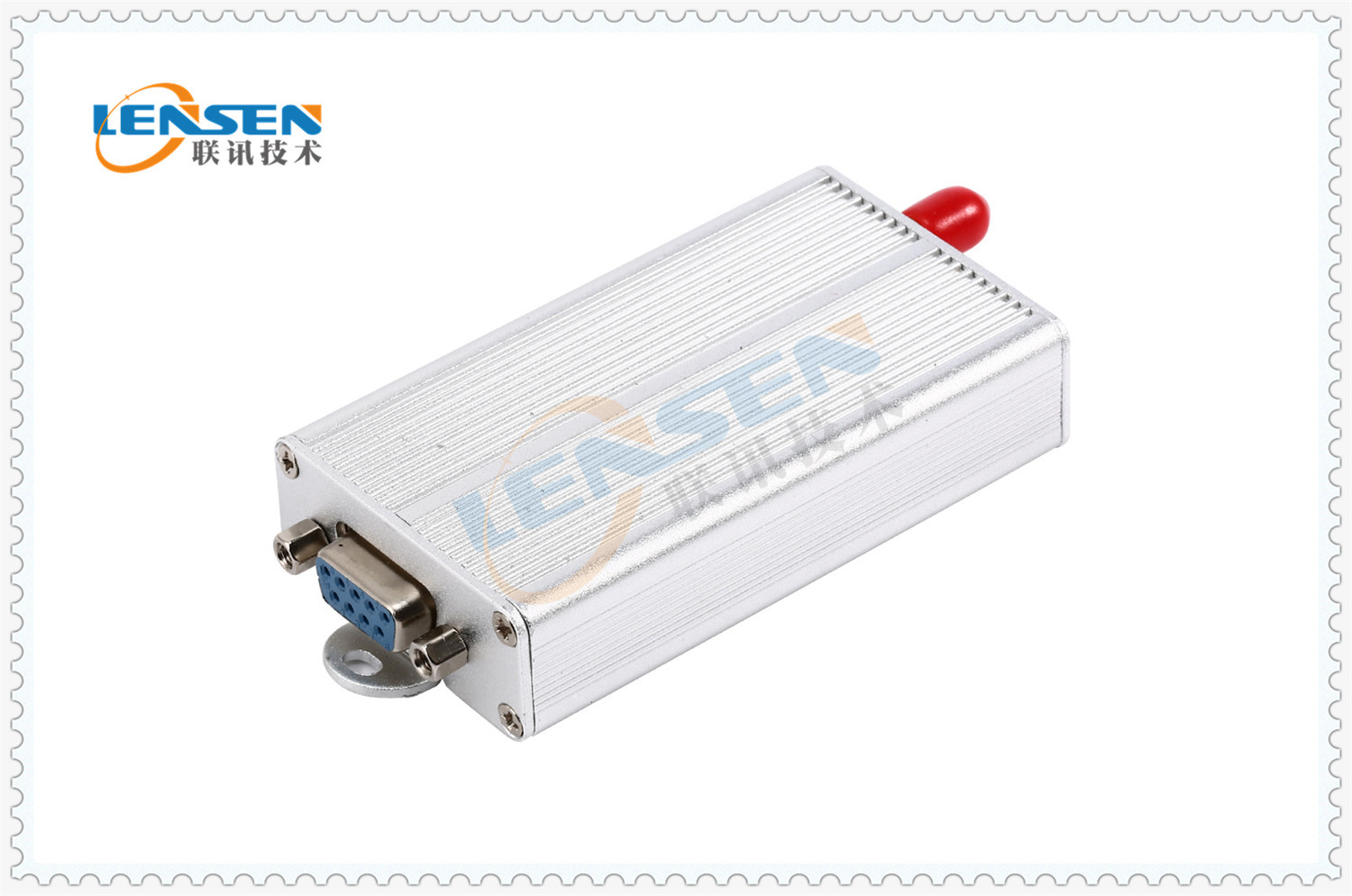

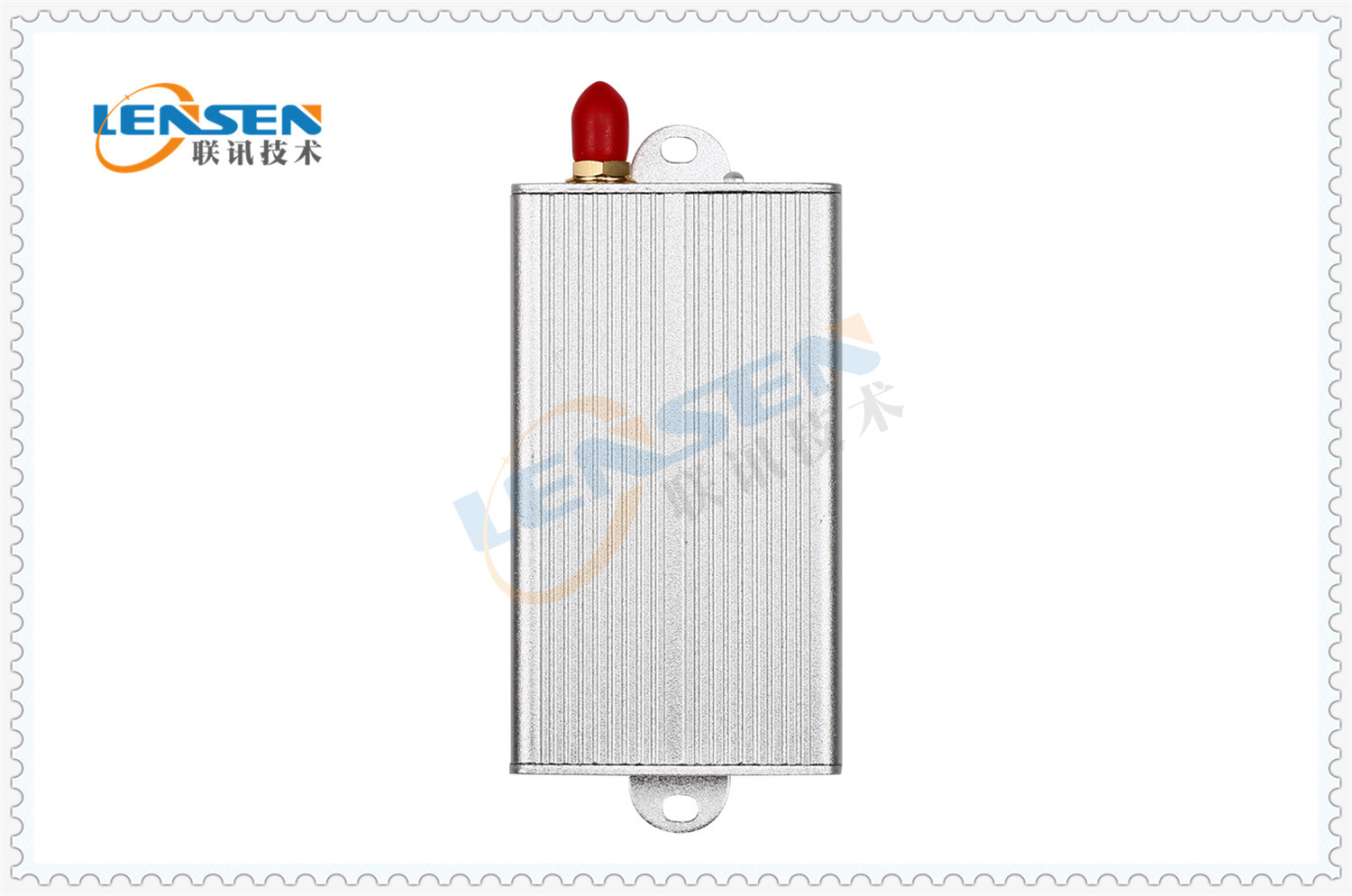

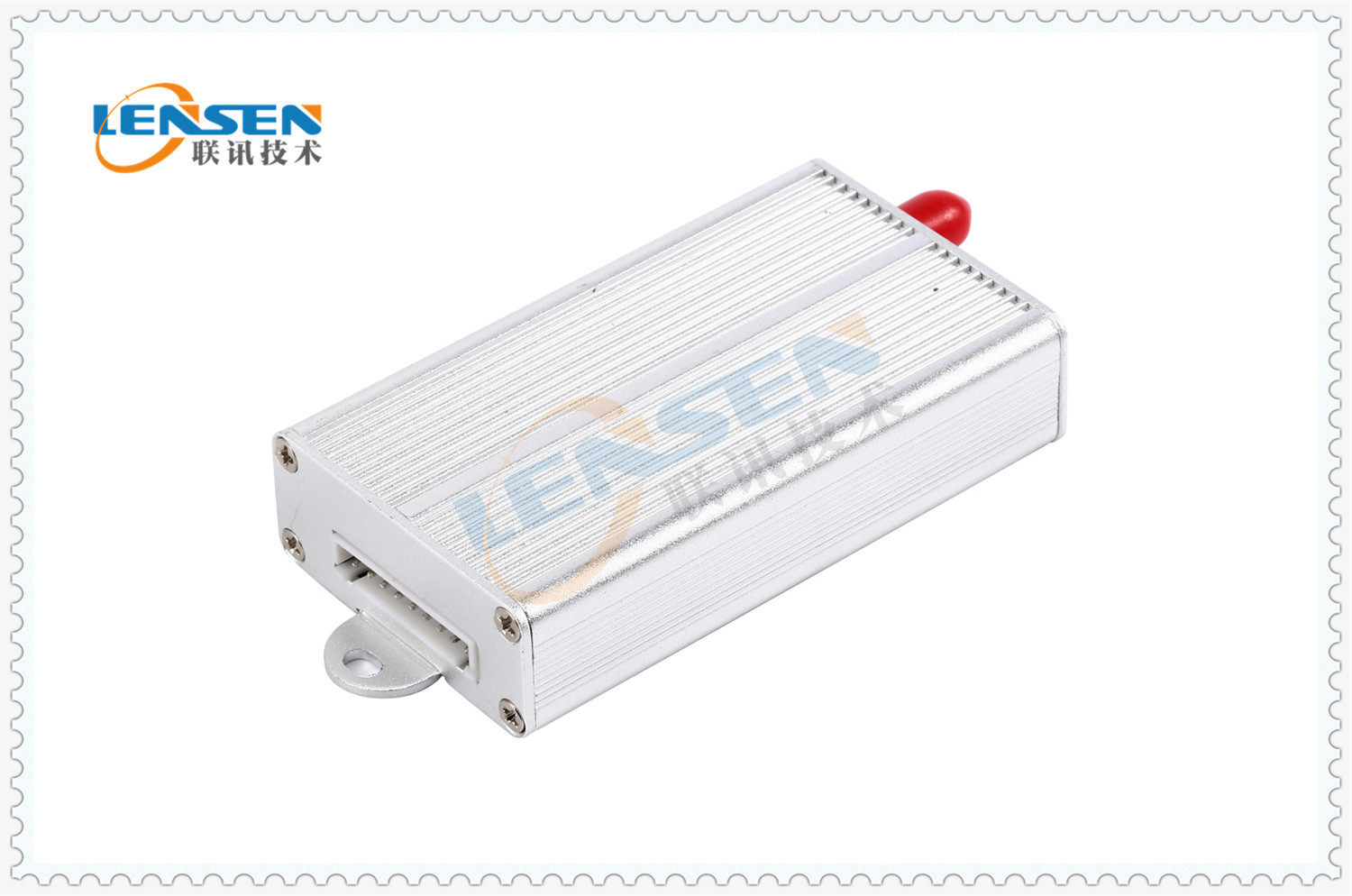

ProductNameLS-U2000

● Power output:2W
● Frequency:433MHz free band or other customize
● Power Supply:5V DC
● Distance:5km-7km
● Interface:RS232/RS485/TTL
  • Parameter list
  • Download
  • Application



Parameter

Power output:

2W

Distance:

7km@1200bps; 5km@9600bps

Baud rate:

1200/2400/4800/9600/19200bps

Channel Space:

1MHz(default)  12.5/25KHzcustomize

Bandwidth:

<25KHz

Receiving Sensibility:

-123dBm@1200bps, -118dbm(9600bps)

Compatible with

LS-UN10, UN100, UN1000, UN2000, UN5000, LS-RDIO series, LS-RAIO series

Power

Power Supply:

5V DC default)

Transmitting current:

<1.5A

Receiving current:

<30mA

Sleep current:

<20uA

General

Modulation:

FSK/GFSK

Frequency:

433MHz, or 400MHz, 450MHz, 470MHz or other

Data format

8N1, 8EI, 8O1 programmable, or other customize

Channel No.

8(default)16/32/64(customize)

Interface:

TTL/ RS232/RS485

TX RX swift time

<10ms

Physical Properties

Dimension:

85mm×48mm×20mm
(exclude antenna connector and pin terminal)

Weight:

120g

Antenna connector:

50Ω,  SMA

Working temperature:

Industrial-40~+85(TCXO)
